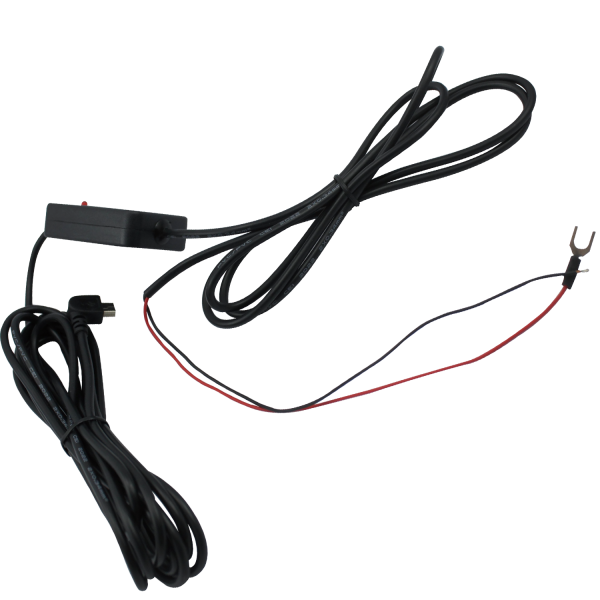

The zWireKit hard wire dash cam kit allows your Dash Cam to be directly hardwired to your car, truck, bus, or big rig effortlessly. Now your dash camera can run from the battery for days, weeks or even months while you’re parked. Always know and have video evidence if anybody hit your vehicle, scratched or vandalized it!

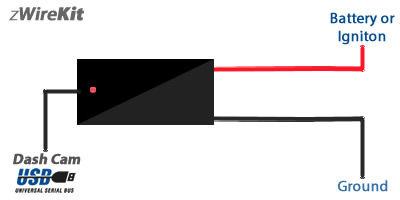

The zWire-Kit can be connected two different ways to your vehicle:
The hard wire kit is compatible with almost all types of cars, trucks, big rigs, SUVs or anything on wheels that you want to protect. The zWireKit smart detection system accepts 12 – 24V battery voltage that’s converted into a constant 5V 1000 mA, perfect for any type of USB powered dash camera. The zWireKit has a smart drained battery detection system that will automatically shut off the power to your dash cam when the battery does not have adequate power to start your vehicle. When the voltage returns to normal and the zWireKit senses there is enough power in the battery the hard wire kit send power back to the dash cams. The zWireKit is compatible with Zetronix models zDrive-HDi and zBB-2000HD. The zWireKit hard wire system will power any type of USB dash cam.
|Automatic Cutoff||Input Voltage below 11.6V / 23.2V|
|Cable Length||4.5 Feet to battery, 7.5 Feet to USB|
|Input Voltage||DC 12V – 24V|
|Output Current||1000 mA|
|Power Consumption||2 - 2.5 W|
|Low Voltage Indicator||Red light On = Normal Operation Red light Off = Voltage Low, Power Automatic Cut-off|
|Low Voltage Detection Point||For 12V Vehicle: When Voltage below 11.6 V For 24V Vehicle: When Voltage below 23.2V|
