Security Camera Wiring & Cable Types: A Complete Guide

March 22, 2025

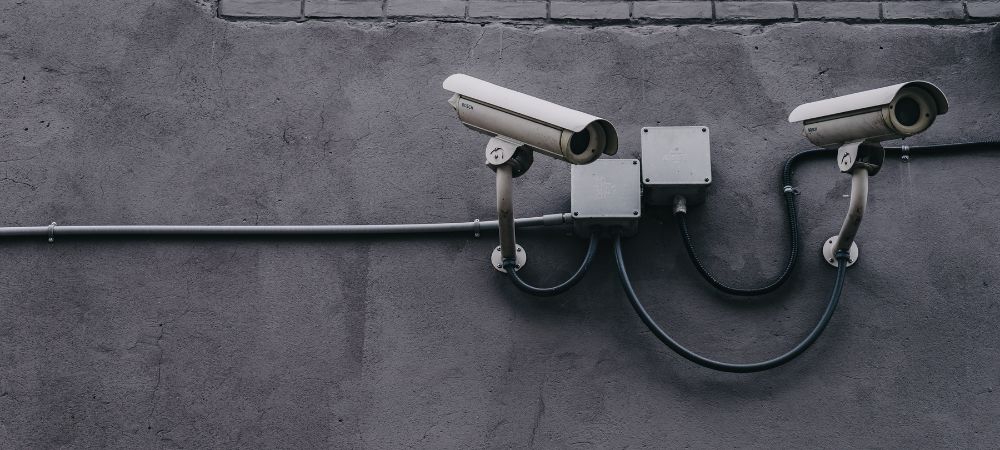

Types of Security Camera Wiring

Security camera wiring plays a crucial role in the performance and reliability of a surveillance system. Choosing the right wiring type depends on the type of camera system being installed, whether analog or digital (IP). Each type of cable has its advantages, applications, and installation requirements, making it essential to understand their differences.

Analog security cameras rely on coaxial cables to transmit video signals. These systems are generally more affordable and widely used in traditional CCTV setups. In contrast, digital IP cameras use Ethernet cables to transmit high-quality video and data over a network. IP cameras offer higher resolution, remote access, and advanced features, making them a popular choice for modern surveillance.

Several types of cables are commonly used for wiring security cameras, each serving specific purposes:

Coaxial Cables (RG59, RG6): These cables are primarily used for analog CCTV cameras. RG59 is the most common for short-distance installations, while RG6, with thicker shielding, supports longer runs with less signal loss. Coaxial cables typically require a separate power cable, which adds complexity to installation.
Ethernet Cables (Cat5e, Cat6): Used for digital IP camera systems, Ethernet cables transmit both video and data efficiently. Cat5e is standard for most installations, while Cat6 offers higher bandwidth and better interference resistance, making it ideal for advanced surveillance systems requiring higher resolutions and faster speeds.
Power-over-Ethernet (PoE) Cables: PoE cables combine power and data transmission into a single Ethernet cable, simplifying installation and reducing the need for additional wiring. PoE technology allows cameras to be powered directly through the network switch, eliminating the need for separate power sources and enhancing system scalability.
Siamese Cables (Power + Video): Commonly used in analog security camera systems, Siamese cables combine a coaxial video cable and a power cable in one line. This design makes it easier to install and manage, reducing clutter and ensuring a stable power supply for cameras without needing separate power wiring.

Wiring for Security Cameras: Understanding the Diagrams

Proper wiring for security cameras is essential for ensuring a reliable surveillance system. Different security camera setups require specific wiring configurations, which are often represented in wiring diagrams. These diagrams help installers understand how to connect cameras, power sources, and recording devices efficiently. The number of wires used depends on the type of camera, power source, and additional features like audio or control signals.

4-Wire Security Camera Wiring Diagram Explained: A 4-wire security camera setup typically includes two wires for power (positive and negative) and two for video transmission. This configuration is common in analog CCTV systems where the camera is connected to a DVR using a coaxial cable for video and a separate power cable.
5-Wire Security Camera Wiring Diagram Overview: A 5-wire configuration is often used for cameras with additional features, such as audio recording. In this setup, the wiring includes two power wires, two video transmission wires, and an extra wire for audio or ground. This setup provides better functionality, especially in surveillance systems that require sound monitoring.
6-Wire Security Camera Wiring Diagram and Its Applications: A 6-wire setup is commonly used in advanced security camera systems that require multiple signal transmissions, such as video, power, audio, and control signals. This configuration may be found in PTZ (Pan-Tilt-Zoom) cameras, which need additional wires for controlling movement and zoom functions.

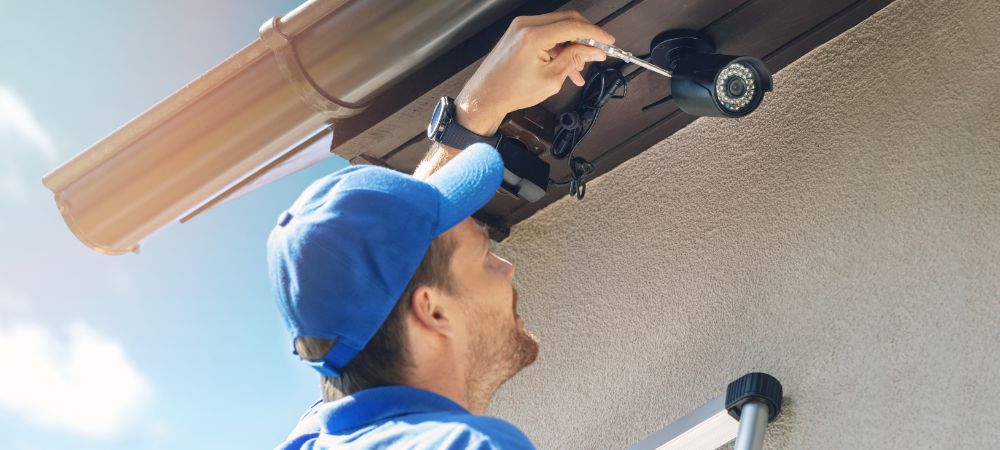

How to Install Security Camera Wiring?

Proper security camera wiring ensures a stable, interference-free surveillance system. Whether indoors or outdoors, correct installation prevents signal loss, power issues, and tampering.

DIY vs. Professional Installation
DIY installation is cost-effective and works well for simple setups like PoE or wireless systems. However, for complex wiring, large properties, or in-wall and underground cable runs, professional installation ensures optimal connections and camera placement.
Outdoor Wiring: Weatherproofing & Safety
Protect cables from weather, animals, and tampering with waterproof conduit, UV-resistant cables, and junction boxes. Concealing wiring inside walls or underground conduits enhances security while grounding and surge protectors prevent electrical damage.
Indoor vs. Outdoor Wiring
Indoor wiring is easier, using walls, ceilings, or cable channels. Outdoor setups require buried cables or conduits for durability and protection against tampering and environmental damage. Careful planning, weatherproofing, and secure routing ensure a long-lasting, reliable security camera system.

Tools and Materials Needed

Installing security camera wiring requires various tools and materials, including:

Cables (Ethernet, coaxial, or Siamese, depending on the camera type)
Drill and drill bits for mounting cameras and running cables through walls
Cable conduit or protective tubing for outdoor installations
Cable clips and ties to secure and organize wiring
Wire strippers and crimping tools for proper cable connections
Network switch or PoE injector (for IP cameras)
Power adapters or distribution boxes for non-PoE cameras
Voltage tester to ensure proper power supply

Outdoor Security Camera Wiring: Challenges & Solutions

Outdoor security camera wiring faces challenges like harsh weather, tampering risks, and complex cable routing. Proper installation ensures long-term reliability.

Protecting Cables from Weather & Tampering:
Shield wires with weatherproof cables, conduits, or junction boxes to prevent damage from rain, heat, or UV exposure. Conceal wiring inside walls, underground, or within metal/PVC conduits to deter tampering.
Best Practices for Running Cables:
Secure cables along walls using clips or conduits to prevent sagging. For underground runs, use PVC conduit at least 18 inches deep and opt for gel-filled or direct-burial-rated cables to protect against water and pests.
Wired vs. Wireless Setups:
Wired cameras offer stable connections, superior video quality, and better security, while wireless options are flexible but reliant on a strong internet connection and may still need power sources.

Home Security Camera Wiring Best Practices

Proper home security camera wiring ensures a clear, stable, and reliable surveillance system. Careful planning, proper installation, and regular maintenance help prevent signal interference, power failures, and connectivity issues.

Planning & Layout:
Create a wiring layout before installation to determine optimal routes and secure cables through attics, walls, or conduits. Position cameras at key entry points and consider PoE (power-over-Ethernet) technology for simplified wiring with both power and data transmission in a single cable.
Avoiding Interference & Signal Loss:
Keep security camera cables away from high-voltage electrical lines to prevent distortion. Use shielded cables (STP Ethernet, coaxial with grounding) to reduce electromagnetic interference. For long cable runs, signal boosters or extenders help maintain video quality.
Ensuring Proper Power & Backup:
Use correctly rated power adapters and a centralized power distribution box for efficient cable management. Prevent downtime with uninterruptible power supplies and surge protectors to safeguard cameras from power surges.

Troubleshooting & Maintenance

Regular troubleshooting and maintenance keep security cameras reliable by preventing signal loss, power failures, and connectivity issues.

Fixing Common Wiring Issues:
Loose connections, damaged cables, or power failures can disrupt the system. Inspect cables for cuts, fraying, or water damage. Poor video quality may indicate interference or faulty connections—secure wires, replace damaged cables, and keep them away from power lines.
Checking Connections & Power Supply:
Ensure Ethernet, coaxial, and power cables are securely connected. For PoE cameras, verify power from the network switch. Use a voltage or network tester to diagnose connectivity issues.
Upgrading or Replacing Cables:
Aging cables may degrade, causing signal loss or poor video quality. Upgrading to shielded cables, PoE, or fiber-optic lines enhances performance and future-proofs the system.

Conclusion

Choosing the right wiring for security cameras depends on factors like camera type, environment, and power needs. Analog systems use coaxial or Siamese cables, while digital IP cameras rely on Ethernet and PoE for seamless power and data transmission.

High-quality cables minimize interference and ensure long-term reliability. For outdoor setups, plan cable routes carefully and use protective conduits for how to hide security camera wires outside.

Solar powered security camera options, like those from Zetronix, offer a wireless alternative, reducing wiring challenges while ensuring continuous operation. To future-proof your system, consider PoE or fiber-optic cables for better scalability and durability.

FAQs:

What type of cable is best for security cameras?

Ethernet cables (Cat5e or Cat6) are ideal for IP cameras, while coaxial cables (RG59 or RG6) are used for analog systems. PoE cables are preferred for reducing extra power wiring.

How do I protect outdoor security camera wiring?

Use weatherproof conduit, UV-resistant cables, and secure wiring inside walls or underground to prevent weather damage and tampering.

Can I install the security camera wiring myself?

Yes, a DIY installation is possible with the right tools and knowledge, but professional installation is recommended for complex setups or large properties.

How far can I run security camera cables?

Ethernet cables (Cat5e/Cat6) typically support up to 328 feet without signal loss, while coaxial cables can run longer distances but may require amplifiers or boosters.

What are the benefits of PoE (power-over-Ethernet) for security cameras?

PoE simplifies installation by delivering power and data through a single cable, reducing clutter and eliminating the need for separate power sources.
